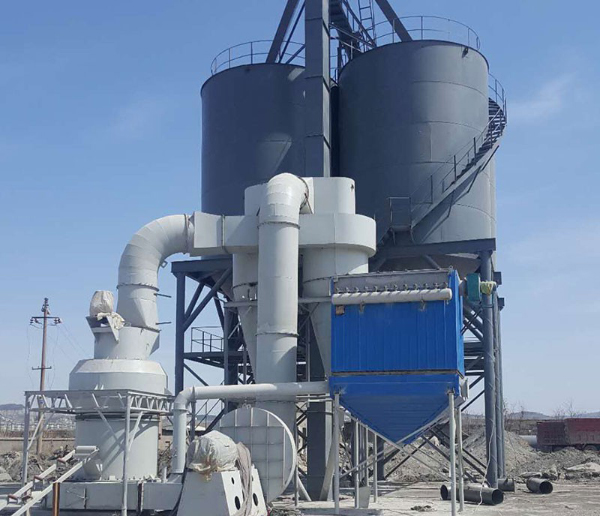

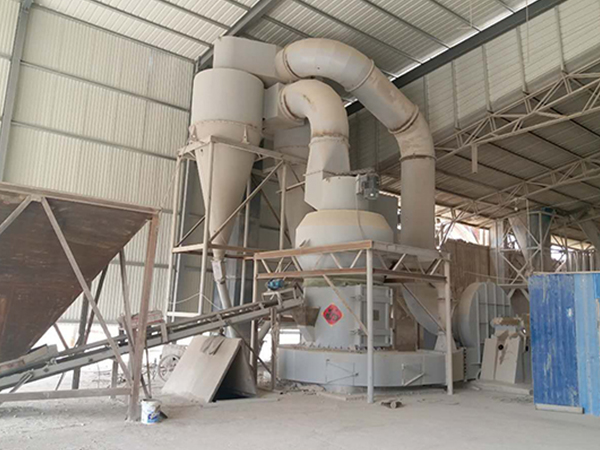

R-type pendulum mill
1. R-type pendulum mill is suitable for processing gypsum, calcite, limestone, barite, fluorite, apatite, feldspar and quartz, etc. The hardness is not more than 7,
2. Grinding of various non-flammable and explosive mineral materials with humidity below 6%.
3. The block material is crushed to the particle size of 0-30mm,
R type pendulum mill technical parameters
|
型号 Model |
6R4525 |
5R4119 |
4R 3216 |
3R 2714 |
|
进料粒度 feed particle size（mm） |
≤30 |
≤25 |
≤25 |
≤25 |
|
成品粒度 grain size of finished product（mm） |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
|
不同物料细度产量 Output of different material fineness（t） |
4-12 |
2-6.3 |
1-3.2 |
0.5-1.6 |
|
中心轴转速 Central shaft speed（r/min） |
90 |
105 |
130 |
160 |
|
磨环直径 Diameter of grinding ring（mm） |
1520 |
1400 |
1070 |
970 |
|
磨辊直径 Diameter of grinding roller（mm） |
450 |
410 |
320 |
270 |
|
磨辊高度 Height of grinding roller（mm） |
250 |
190 |
160 |
160 |
|
主机电机 Main motor |
y315m-4-132 |
y280s-4-75 |
y225s-4-37 |
y225m-8-30 |
|
风机电机 Fan motor |
y315m-4-132 |
y250m-4-75 |
y200L-4-37 |
y180m-4-22 |
|
分析器电机analyzer motor |
y160m-4-11 |
Y132-4-7.5 |
y132-4-5.5 |
y112-4-4 |
