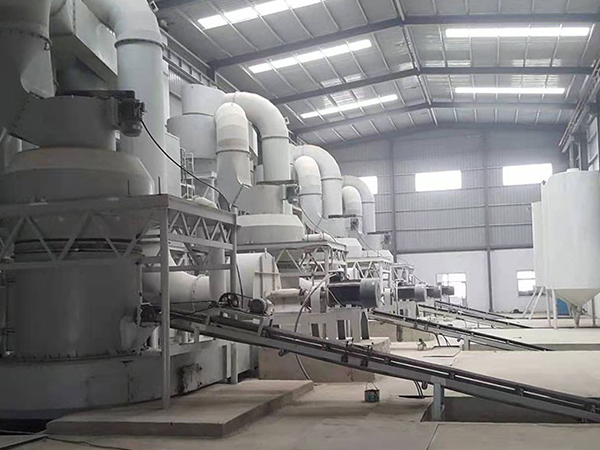

1. A new type of Raymonds machine with high efficiency and energy saving.
2. It is suitable for grinding limestone, marble, calcite, talc, gypsum, zeolite, manganese ore, barite, fluorite, ilmenite, bentonite, phosphate rock, starch, kaolin and other materials with hardness below Mohs grade 7,
3. Non-flammable and explosive materials with humidity below 6%,
4. The fineness is arbitrarily adjusted between 0.18 and 0.015(80-800 mesh).
LQ longitudinal pendulum mill technical parameters
|
型号 Model |
LQ2300（纵摆 |
LQ2100（纵摆 |
LQ1900（纵摆 |
LQ1700（纵摆 |
LQ1300（纵摆 |
LQ1000（纵摆 |
|
进料粒度feed particle size（mm） |
≤40 |
≤40 |
≤30 |
≤30 |
≤25 |
≤25 |
|
成品粒度 grain size of finished product（mm） |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
|
不同物料细度班产 Different material fineness shift production（t） |
30-100 |
16-50 |
10-40 |
8-30 |
3-9 |
1.5-4.8 |
|
中心轴转速 Central shaft speed（r/min） |
64 |
72 |
78 |
83 |
105 |
130 |
|
磨环直径 Diameter of grinding ring（mm） |
2300 |
2100 |
1900 |
1700 |
1300 |
1000 |
|
磨辊直径 Diameter of grinding roller（mm） |
630 |
630 |
510 |
510 |
420 |
350 |
|
磨辊高度 Height of grinding roller（mm） |
280 |
280 |
280 |
280 |
240 |
210 |
|
主机电机 Main motor |
400KW高压 |
Y355L-4-315 |
Y355M-4-220 |
Y315l1-4-160 |
y280s-4-75 |
y225m-4-45 |
|
风机电机 Fan motor |
280KW高压 |
Y355M-4-220 |
Y315l1-4-160 |
y315m-4-132 |
y280s-4-75 |
y225m-4-45 |
|
分析机电机 Analysis machine motor |
Y250M-8-30 |
Y250M-8-30 |
Y225m-8-22 |
Y225m-8-22 |
Y132-4-7.5 |
y132-4-5.5 |
